MUTAI CMTQ4 Series ATS Dual Power Automatic Transfer Switch

Short Description:

CMTQ4 ATS series Automatic transfer switch mainly used for distribution or electromotor network, which under voltage 400V, rated voltage AC 400V, Rated current 32A-3200A.
Main power and standby power or mutual standby power change over system or city power and generator group overload switch-over. At the same time, it can operated under un-frequency on and off circuit act as disconnector.

Send email to us

Product Detail

Product Tags

Product Details

The product widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building,etc, where doesn't allow power off.

1. Electrical and mechanical properties of dual power automatic transfer switch

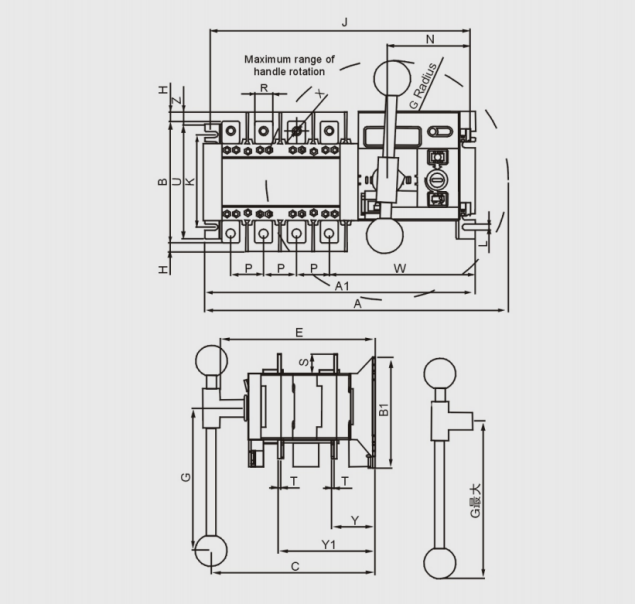

2. Overall and installation dimension drawing ( 100-1600)

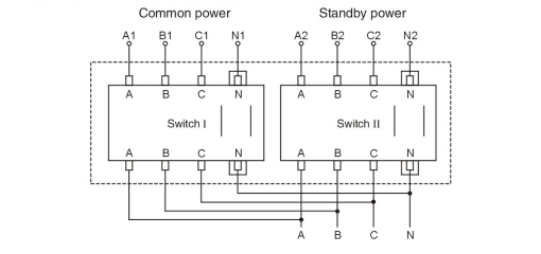

3. Main Circuit Wiring diagram

Application

The CMTQ4 ATS supply system applicable to changeover the main power supply and backup power supply automatically or two sets load equipment and safety isolation automatically.

This dual power automatic transfer switch is widely used in hospitals, banks, high-rise architecture and so on, which are very important place disallow the failure to supply, distribution and automaticion system.

Others

Packaging

CMTQ4-100 8pcs per outer carton
CMTQ4-160 4 pcs per outer carton
CMTQ4-250 2pcs per outer carton
CMTQ4-400 1pc per outer carton
CMTQ4-630 1pc per outer carton

Q & C

With ISO 9001, ISO14001 management system certificates, the products are qualified by international certificates CCC, CE, CB.

Main Market

MUTAI Electric focus on Middle East, Africa, South East Asia, South America, Russia Market.

Why choose us

1. More than 10 years experience of producing MCB, MCCB, ACB, RCBO, RCCB, ATS, Contactor... etc.
2.Completed industrial chain from component production to complete products assembly, testing and under routine control.
3.With ISO 9001, ISO14001 management system certificates, the products are qualified by international certificates CCC, CE, CB.
4.Professional technical team, can provide OEM and ODM service , can supply competitive price.
5.Fast delivery time and good after-sale service.
