CMTQ2 16 ~ 63 Amp ATS Generator Automatic Transfer Switch

Short Description:

The CMTQ2 automatic transfer switch (ATS) is designed for AC 50/60Hz, with a rated operating voltage of 400V and a rated current of 63A or less. It is available in 2-pole or 4-pole configurations and is commonly used in office buildings, markets, banks, stations and hospitals. This product complies with IEC/EN60947-4-1 standard.

Send email to us

Product Detail

Product Tags

Product Details

Dual power automatic transfer switch (ATS) is suitable for final dual-circuit power supply systems with a frequency of 50Hz/60Hz and a rated operating voltage of 220V (2p) and 380V (3p and 4p),rated current 10 ~ 63 Amp. It has the ability to automatically switch from main power supply to backup power supply, improving the reliability of power supply. Its main applications include fire pumps, smoke exhaust fans, elevators, pumps and lighting in high-rise buildings, shopping malls and other similar places.

1.Technical specifications

Automatic Transfer Switching（ATS）
Rated Working Current	16A	20A	25A	32A	40A	50A	63A
Rated Working Voltage	AC400V
Controling Voltage	AC230V
Rated Short Circuit Breaking Capacity	3KA
Rated Short Circuit Making Capacity	3KA
Rated Insulation Voltage	AC500V
Transfer Time	≤3S
Frequency	50/60HZ
Level	CB Class
Standard	IEC60947-1

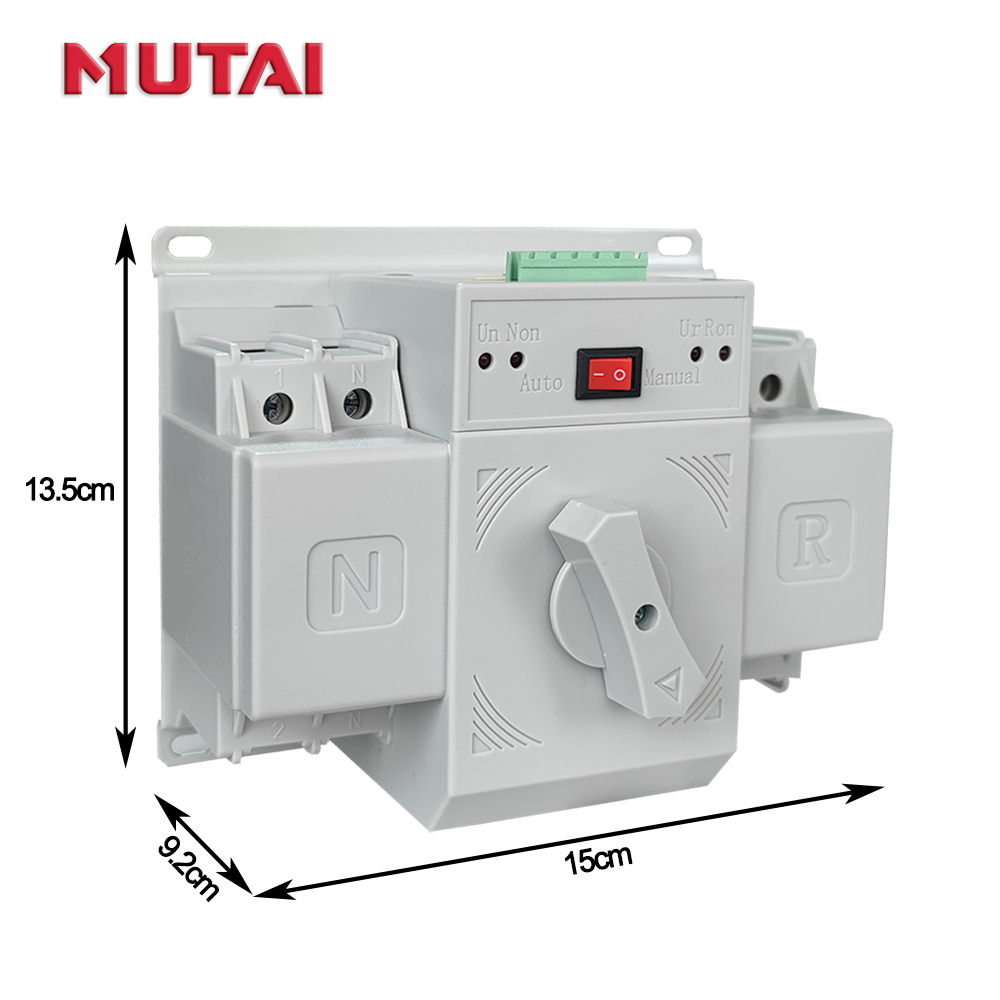

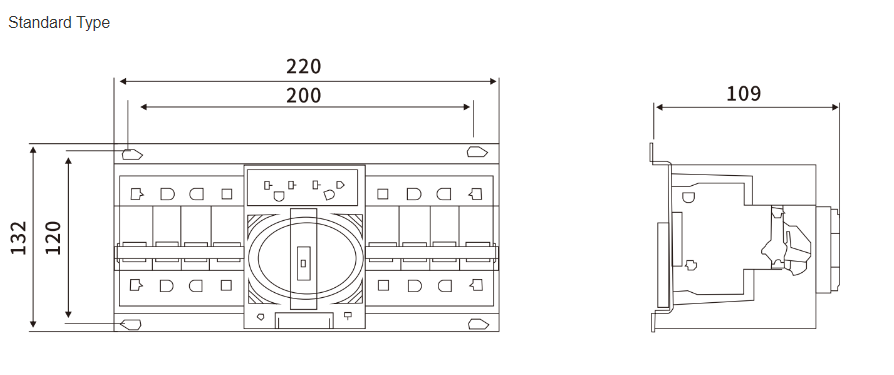

2.Outline and installation dimension (mm)

Application

The CMTQ4 ATS power supply system is designed to automatically switch between main and backup power sources or between two sets of load equipment, while also providing safe isolation. This dual power automatic transfer switch is commonly used in critical locations such as hospitals, banks and high-rise buildings that require uninterrupted and reliable power supply, distribution and automation systems.

Others

Packaging

CMTQ4-63 Amp: 1 PC per inner box , 8 pcs per outer carton

Q & C

The products have obtained CCC, CE, CB and other international certifications, and hold ISO 9001 and ISO 14001 management system certificates.

Main Market

MUTAI Electric focus on Middle East, Africa, South East Asia, South America, Russia Market.

Why choose us

1. More than 10 years experience of producing MCB, MCCB, ACB, RCBO, RCCB, ATS, Contactor... etc.
2.Completed industrial chain from component production to complete products assembly, testing and under routine control.
3.With ISO 9001, ISO14001 management system certificates, the products are qualified by international certificates CCC, CE, CB.
4.Professional technical team, can provide OEM and ODM service , can supply competitive price.
5.Fast delivery time and good after-sale service.
