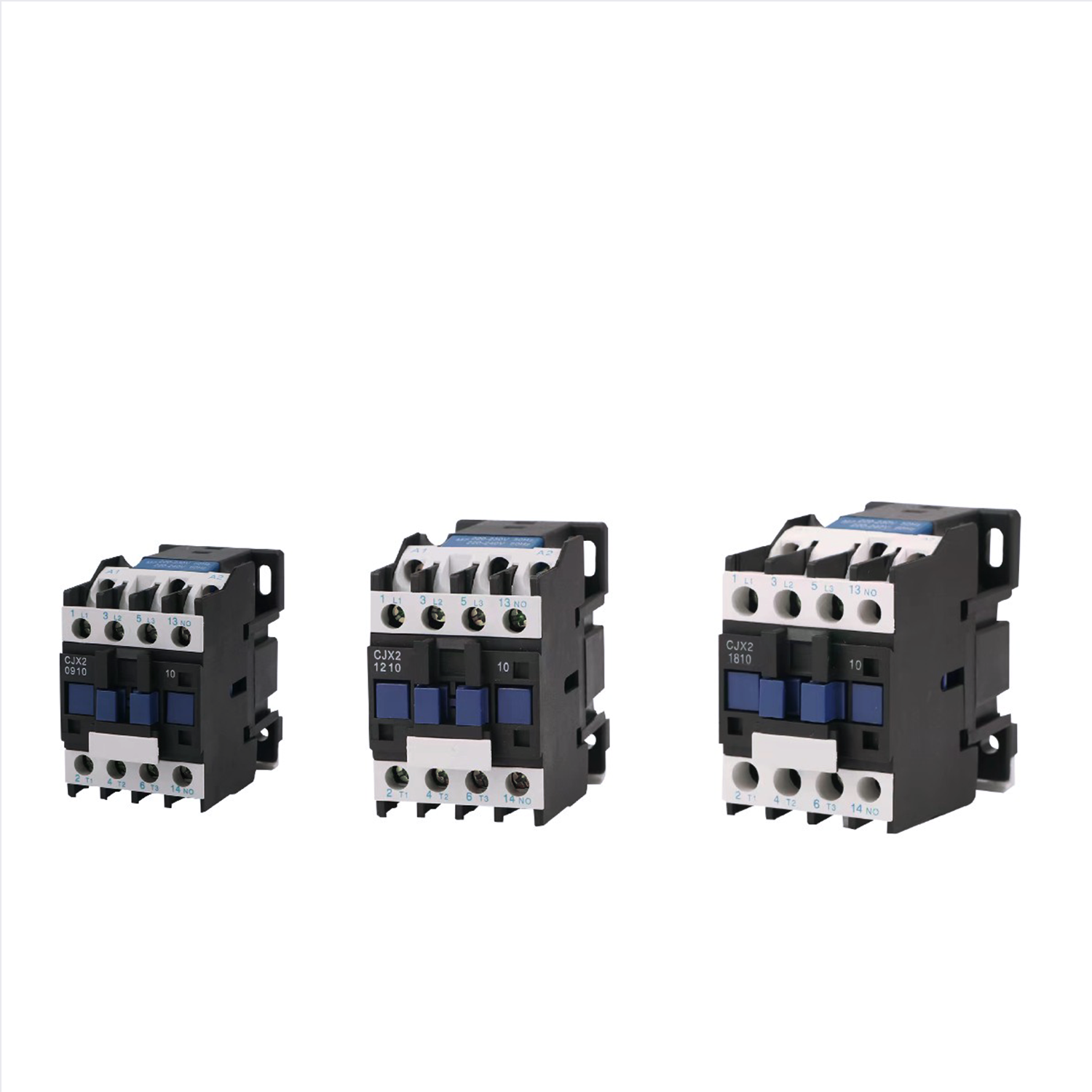

AC contactors are an important component in the operation of many electrical systems. They play a vital role in controlling the flow of current and ensuring the smooth operation of various devices and equipment. In this article, we will take an in-depth look at the components and working principles of AC contactors, clarifying their importance and functions.
An AC contactor mainly consists of four key components that work together to perform its intended function. The first part is the electromagnetic system, which consists of an attraction coil, a moving iron core, and a static iron core. When the attraction coil is energized, it will generate electromagnetic force, which will pull the moving iron core toward the static iron core. This movement is critical to the proper operation of the contactor.
The second part of the AC contactor is the contact system. It includes three sets of main contacts and one or two sets of normally open and normally closed auxiliary contacts. These contacts are connected to the moving iron core and are intricately linked to each other. When the electromagnetic force pulls on the iron core, it drives the contacts together, causing them to close. This action allows current to flow through the contactor, allowing the equipment or devices it is connected to to be energized.
In order to ensure the safe operation of the AC contactor, it is equipped with an arc extinguishing device, which constitutes the third part. This feature is usually found in larger capacity contactors. An arc forms when the main contact is subjected to a high current and subsequently opens. The arc extinguishing device is responsible for quickly cutting off the arc, preventing damage to the main contacts and smoothly disconnecting.
The fourth and final part of the AC contactor consists of an insulating housing and various accessories such as springs, transmission mechanisms, short-circuit rings and terminals. These components are critical to providing insulation and protection to ensure proper operation and service life of the contactor.
Understanding how AC contactors work is crucial to understanding how they work. When the coil in the contactor is energized, the static iron core generates electromagnetic force. This force pulls the moving iron core towards the stationary iron core, causing the contacts to close. As a result, the AC contactor is turned on, the circuit is connected, and current flows.
On the contrary, when the coil is deenergized or disconnected, the electromagnetic force generated by the static iron core no longer exists. In response to this, the moving iron core separates from the stationary iron core due to the reaction force of the spring. As a result, the contacts open and the power supply to the connected device is cut off. This effectively disconnects the circuit and ensures the safety of the electrical system.
In summary, an AC contactor consists of four basic components that work in harmony to control the flow of electricity. Their proper operation is critical to the efficient operation of various installations and equipment. Understanding the composition and working principles of AC contactors allows us to understand their importance and ensure their optimal utilization in electrical systems.
