Overview:
An AC contactor is an electrically operated switch designed for controlling AC power circuits. It is commonly used in industrial automation systems to control electric motors, lighting, heating equipment, and capacitor banks. With a compact design, long lifespan, and high switching frequency, it is an essential component in power control and distribution systems.
Structure:
An AC contactor mainly consists of the following components:

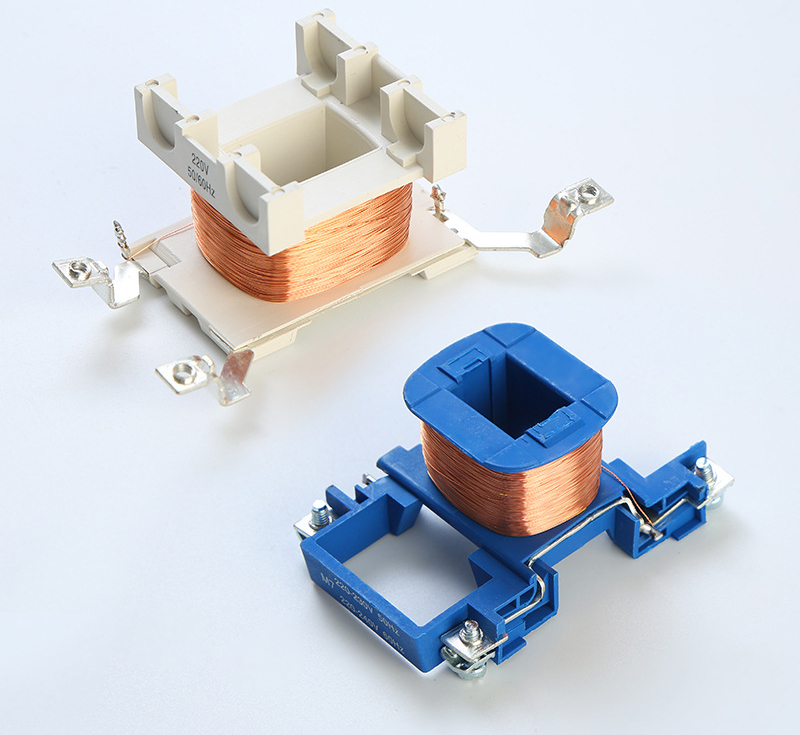

- Electromagnetic coil – generates a magnetic field to actuate the contactor

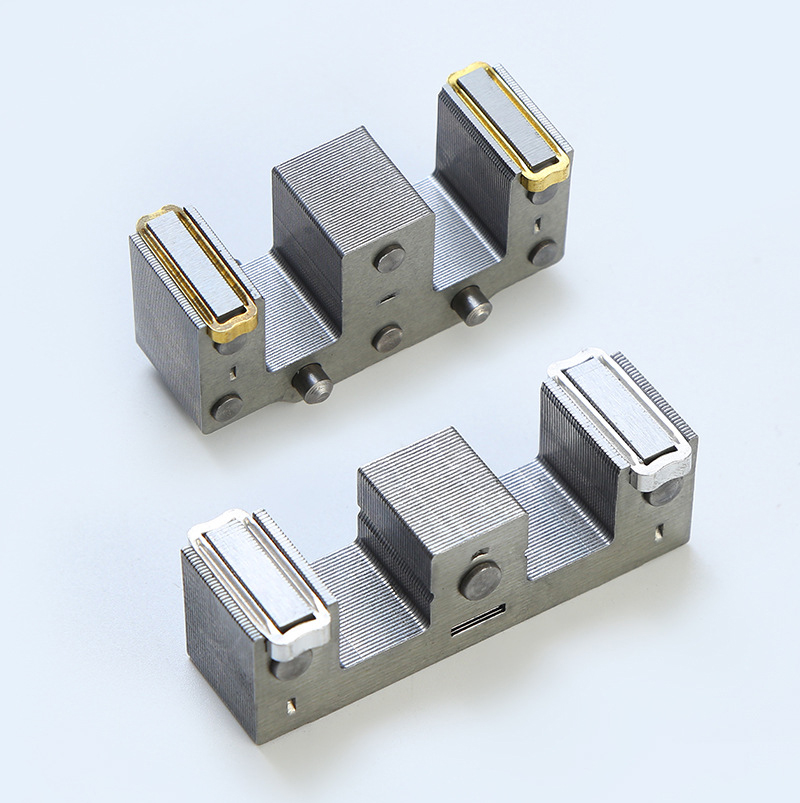

- Movable and fixed iron cores – form the electromagnetic system

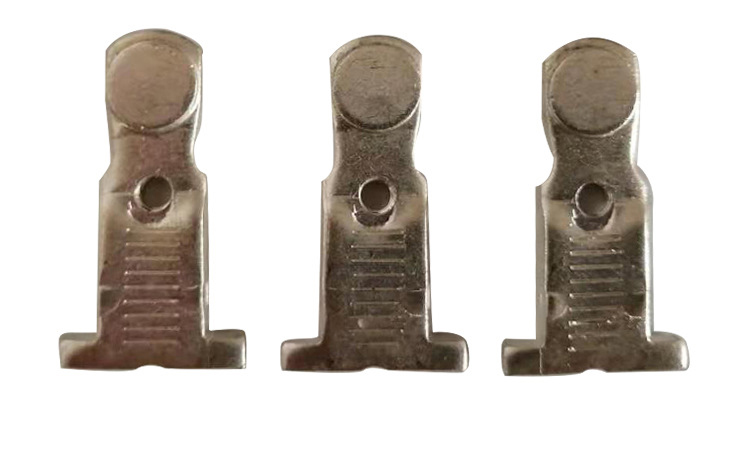

- Main contacts – handle the main power circuit
- Auxiliary contacts – used for signal or control circuits
- Arc extinguishing chamber – ensures safe breaking of the circuit
Working Principle:

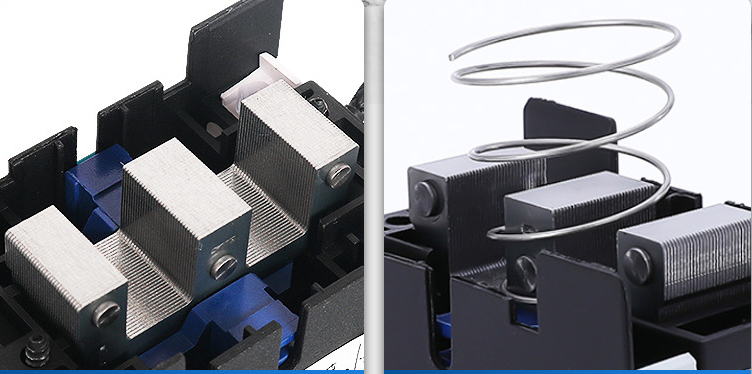

When the electromagnetic coil is energized, it creates a magnetic field that pulls the movable core and closes the main contacts, allowing current to pass through the load. When the coil is de-energized, a spring mechanism returns the contacts to their original position, cutting off the circuit.
Main Classifications:

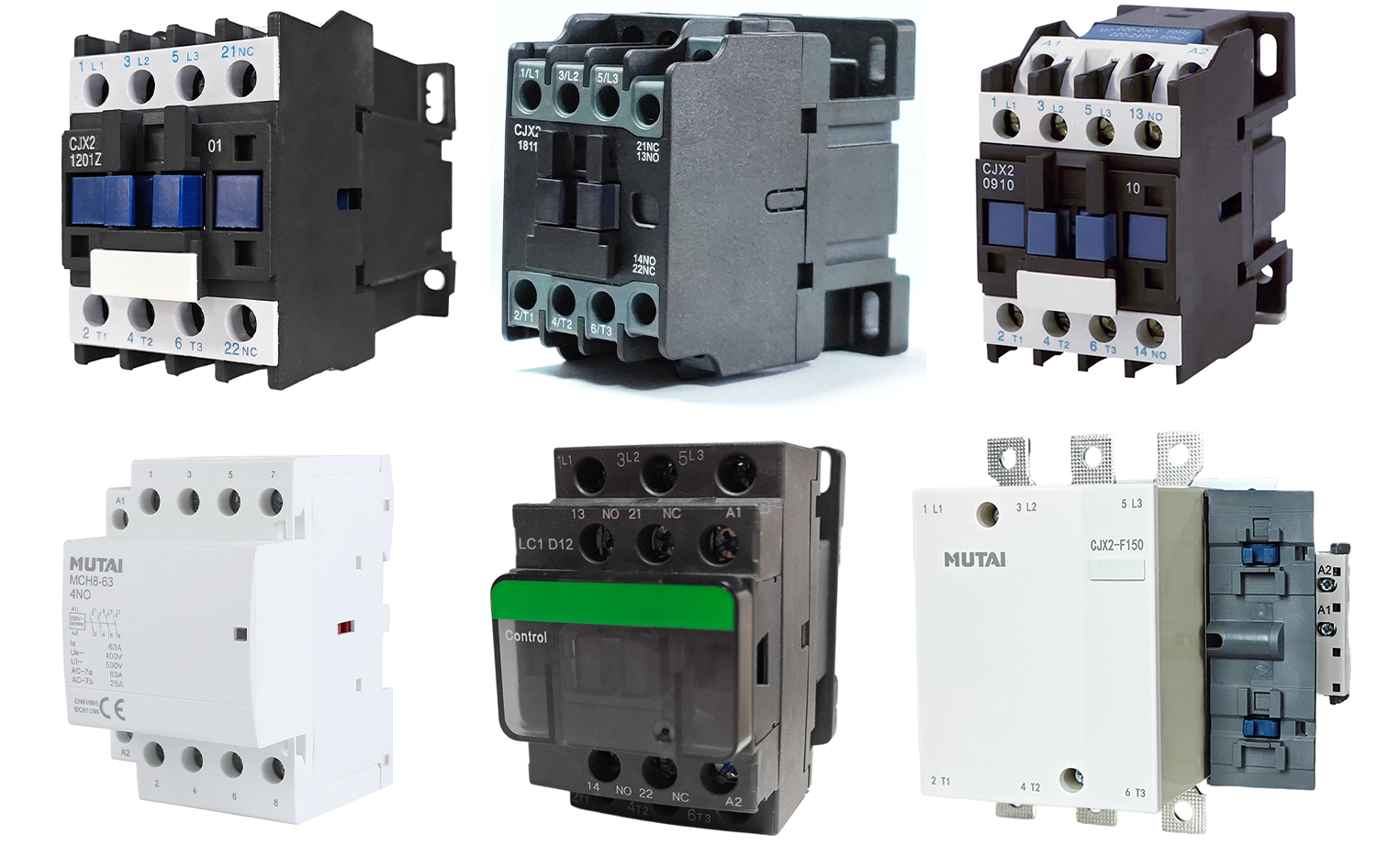

AC contactors can be classified based on various criteria:
AC contactors can be classified based on various criteria:
-
By voltage type:
-
AC contactors
-
DC contactors
-
-
By number of poles:
-
2-pole, 3-pole, or 4-pole contactors
-
-
By load capacity:
-
Miniature contactors (for small loads)
-
Standard or heavy-duty contactors (for industrial motors and systems)
-
Common Applications:
-
Motor control: Start/stop control for AC motors
-
Lighting systems: Remote control of large lighting groups
-
Heating equipment: Switching electric heaters
- Capacitor banks: Reactive power compensation systems
-
HVAC systems, pumps, and compressors in industrial automation
